Hydraulic Grease Nipples (H1)

Printer Friendly Page
Skip to Description
Skip to Prices

Description

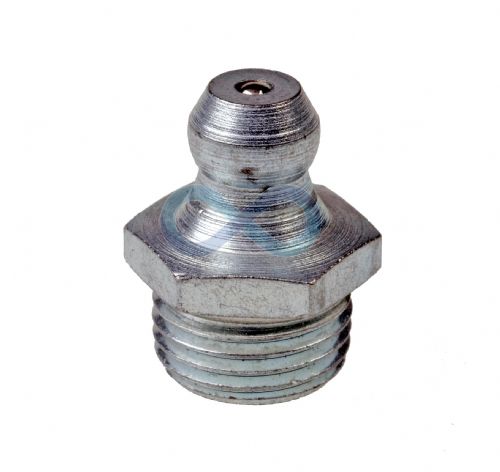

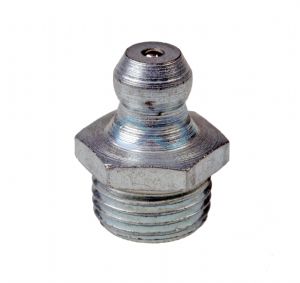

Straight Hydraulic Type Grease Nipples according to DIN 71412.

UMETA hydraulic-type nipples are suitable for all standard lubrication points, which have to be frequently lubricated in a reliable way.

Due to their multi-purpose field of application, they are the most commonly used types of grease nipples.

Standard versions according to DIN are made of steel, case-hardened, zinc-plated and passivated.

Available in steel and stainless steel 303 in 2 diffrent versions, Standard (H1) & Drive Fit (H1a).

The Drive Fit nipples should be be driven in effectively and with care using an UMETA Drive in tool. Please see the H1a data sheet for more infomation.

To be used with 515 hydraulic 4 jaw connectors.

Other sizes and drive fit stainless steel nipples available on request.

Technical Details

Datasheets

Hydraulic Grease Nipples (H1) datasheet
Click Below

1) H1

2) H1a

3) 665181

4) 666901

5) 609301

6) 221610_1A

7) 301801

8) 665181

9) 668601_1A

10) 608901_1A

11) 221608

12) 808058_1A

13) 316M101

Prices (Click quantity for more availability info)

	Size	Mftr Ref	Order Code	Available	1+	10+	100+
Grease Nipples (H1) Steel
	1/4" BSF	1100744	126242	120	£0.40	£0.18	£0.13
	5/16" BSF	1100945	126246	0	£0.67	£0.30	£0.22
	3/8" BSF	1101146	126249	38	£1.52	£0.68	£0.50
	1/4" BSF Long (29mm)	5241062	126257	0	£1.83	£0.82	£0.60
	1/8" BSPT	666901	145601	979	£0.42	£0.24	£0.18
	1/4" BSPT	1101457	126243	16	£1.19	£0.53	£0.39
	5/16" BSW	1100951	126260	34	£0.64	£0.29	£0.21
	1/4" BSW	301801	145606	4632	£0.49	£0.28	£0.21
	1/4" BSW	1100750	126256	4755	£0.53	£0.24	£0.17
	1/8" NPT	221610	145602	1520	£0.46	£0.27	£0.20
	1/4" NPT	1101468	126258	0	£1.49	£0.67	£0.49
	1/4" UNF	1100737	126244	0	£0.43	£0.19	£0.14
	5/16" UNF	1100938	126247	110	£0.64	£0.29	£0.21
	M5 x 0.8	665181	145603	465	£0.69	£0.40	£0.31
	M6 x 1.0	668601	145604	2280	£0.28	£0.16	£0.12
	M6 x 1mm x 29mm	5241060	126261	109	£1.78	£0.80	£0.58
	M8 x 1.0	608901	145991	2237	£0.37	£0.21	£0.16
	M8 x 1.25	1100908	126253	63	£0.54	£0.25	£0.18
	M10 x 1.0	609301	146000	1754	£0.42	£0.24	£0.18
	M10 x 1.5	1101111	126255	38	£0.72	£0.32	£0.24
	M14 x 1.5	1101417	136131	0	£1.52	£0.68	£0.50
Drive Fit Grease Nipples (H1a) Steel
	1/4"	1100187	126241	47	£0.69	£0.31	£0.23
	5/16"	221608	145997	3200	£0.45	£0.26	£0.20
	6mm	1100186	126248	4950	£0.53	£0.24	£0.17
	8mm	1100288	126251	0	£0.77	£0.35	£0.25
Grease Nipples (H1) Stainless Steel 303
	1/8" BSPT	1121156	131907	61	£4.87	£2.19	£1.59
	1/4" BSPT	1121457	131908	0	£7.83	£3.53	£2.56
	M6 x 1.0	1120704	131904	71	£3.88	£1.74	£1.27
	M8 x 1.0	808058	145692	156	£2.96	£1.72	£1.30
Grease Nipples (H1) Stainless Steel 316
	M10 x 1.0	316M101	145992	63	£8.47	£4.90	£3.73

(All Prices Exclude VAT)
