Button Head Grease Nipples Single Hexagon (M1)

Printer Friendly Page
Skip to Description
Skip to Prices

Description

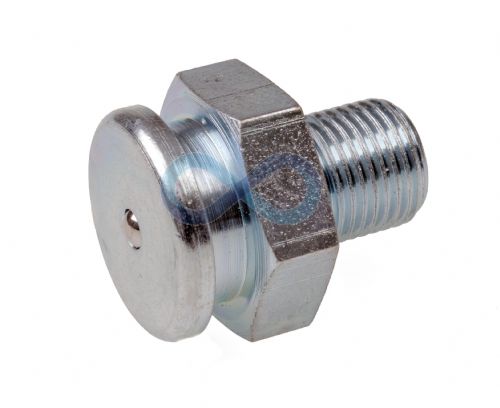

Single Button Head Grease Nipples according to DIN 3404

UMETA button head grease nipples are particularly suitable for lubricating points with a big grease volume because of their specific high flow-rate of grease. As another result of the robust construction, these grease nipples are preferably used in the construction machinery.

Standard versions according to DIN are made of steel, case-hardened, zinc-plated and passivated.

To be used with 521 Hook on connectors.

Stainless steel nipples available on request.

Technical Details

Datasheets

Button Head Grease Nipples Single Hexagon (M1) datasheet
Click Below

1) M1

2) 328101_1A

3) 328501_1A

4) 328601_1A

5) 322214BSP

Prices (Click quantity for more availability info)

	Size	Mftr Ref	Order Code	Available	1+	10+	100+
Button Head 16mm
	1/8" BSPP	328101	145998	103	£1.17	£0.68	£0.51
	1/4" BSPP	328501	145605	434	£1.17	£0.68	£0.51
	3/8" BSPP	4101763 (M1)	126291	81	£2.31	£1.04	£0.76
	M10 x 1.0	328601	145995	477	£1.17	£0.68	£0.51
Button head 22mm
	1/4" BSP	322214BSP	145996	40	£9.88	£5.72	£4.35

(All Prices Exclude VAT)
