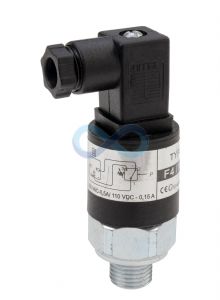

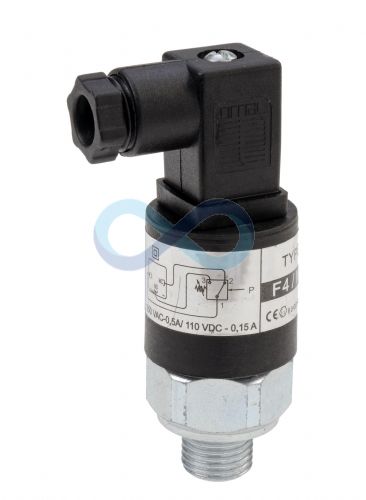

F4 Series Adjustable Pressure Switch

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

The F4 series adjustable pressure switch provides an electrical signal once a set pressure value is reached.

Preset pressure is adjusted by rotating a screw, located in the centre of the switch, clockwise to increase pressure and anti-clockwise to decrease pressure.

This range has a a changeover contact which allows the pressure switch to be used in a normally open or a normally closed condition.

The F4 adjustable pressure switches are suitable for pneumatic, hydraulic and many other applications.

M2 Din plug is included.

Note: To rotate the screw a 2mm allen key is required. Mechanical stops protect the spring and micro-switch from over pressurisation.

Technical Details

Technical Features

Body:

Steel

Connection:

1/4" BSP Male

Mounting:

Any Orientation

Temperature Range:

-25 to 85 Degree C

Frequency:

90 Cycles/Min

Accuracy:

4% of Set Pressure

Fixed Hysteresis:

15% of Set Value

Electrical Features

M2 (Din Plug)

Electrical Connection:

DIN 43650

Weatherproof:

IP65

Max Contact Load:

0.5A at 250VAC

Datasheets

F4 Series Adjustable Pressure Switch datasheet

Click Here

Prices (Click quantity for more availability info)

Adj. Range	Max Pressure	Order Code	Available	1+	5+
0.2 - 2.5 bar	25 bar	127737	1	£38.11	£30.49
1 - 12 bar	25 bar	127738	2	£38.11	£30.49
5 - 50 bar	200 bar	127739	3	£38.73	£30.98
10 - 100 bar	300 bar	127740	2	£38.73	£30.98
20 - 200 bar	300 bar	127741	9	£38.73	£30.98
50 - 400 bar	400 bar	127742	1	£53.77	£43.01

(All Prices Exclude VAT)
