Mechanically operated valve - Medium duty 1/8" & 1/4" BSP

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

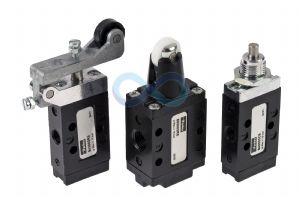

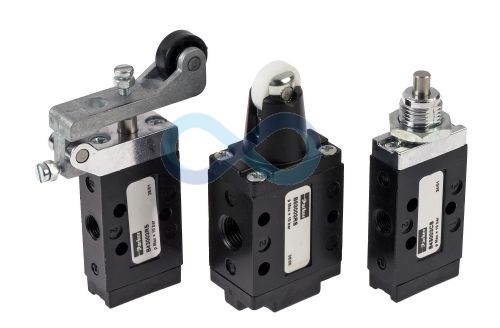

A range of three and five port spool valves actuated by a plunger, roller or roller lever. Available with 1/8" or 1/4" BSP ports.

1/8" BSP valves are referred to as midget spool and 1/4" BSP as intermediate spool

Technical Details

Temperature:

-10 to +80 deg C

Pressure:

10 bar (max)

Qmax:

8.5 l/s (1/8" BSP)

29l/s (1/4" BSP)

Datasheets

Mechanically operated valve - Medium duty 1/8 & 1/4 BSP datasheet
Click Below

1) midgetspoolmech

2) interspoolmech

Prices (Click quantity for more availability info)

	Mftrs List No	Type	Ports	Order Code	Available	1+	5+	20+
Plunger/Spring
	B43003CS	3 port	1/8" BSP	106609	0	£120.63	£110.90	£102.63
	B53003CS	3 port	1/4" BSP	106610	0	£186.07	£171.06	£158.30
	B43004CS	5 port	1/8" BSP	106611	0	£132.35	£121.68	£112.60
	B53004CS	5 port	1/4" BSP	106612	0	£204.99	£188.46	£174.39
Roller Lever/Spring
	B43003RS	3 port	1/8" BSP	106613	0	£157.63	£144.92	£134.11
	B43004RS	5 port	1/8" BSP	106615	0	£163.86	£150.64	£139.40
Roller/Spring
	B53003RS	3 port	1/4" BSP	106614	0	£200.15	£184.01	£170.28
	B53004RS	5 port	1/4" BSP	106616	0	£217.12	£199.61	£184.72

(All Prices Exclude VAT)
