Flow control valves - block type

Flow control valves - block type

Flow control valves - block type

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

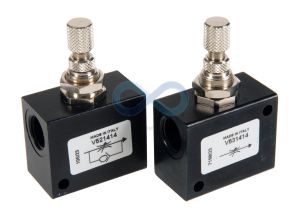

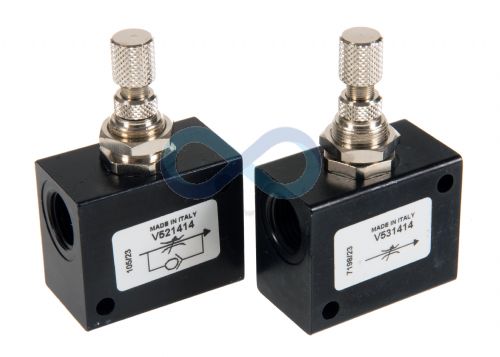

A range of throttle and throttle check valves.

Throttle valve - restricts flow in both directions

Throttle check valve - restricts flow in one direction only - often used for controlling the speed of pneumatic cylinders.

Suitable for panel mounting and can be adjusted by hand or using a screwdriver.

Technical Details

Airwork

Pressure:

2 - 10 bar

Temperature:

-10 to +80 deg C

API

Pressure:

0-10 bar

Temperature:

-20 to +70 deg C

Datasheets

Flow control valves - block type datasheet
Click Below

1) Airwork_Flow_Regulators

2) API_V52_V53

Prices (Click quantity for more availability info)

	Thread	Code	Make	Order Code	Available	1+	5+	20+	Quantity
Throttle Valve (Bi-Directional flow control)
	M5	RF4005100	Airwork	140841	8	£19.89	£17.40	£15.47
	1/8" BSP	RF4005200	Airwork	140842	4	£19.89	£17.40	£15.47
	-	V531818	API	145985	14	£14.15	£12.87	£10.89
	1/4" BSP	V531414	API	145986	9	£16.66	£15.15	£12.82
	3/8" BSP	V533838	API	145987	9	£51.33	£46.66	£39.48
	1/2" BSP	V531212	API	145988	9	£51.33	£46.66	£39.48
Throttle Check Valve (Uni-Directional)
	M5	RF4004100	Airwork	140846	0	£19.89	£17.40	£15.47
	1/8" BSP	RF4004200	Airwork	140847	3	£17.48	£15.29	£13.59
	-	V521818	API	145981	18	£14.15	£12.87	£10.89
	1/4" BSP	RF4004300	Airwork	140848	1	£17.48	£15.29	£13.59
	-	V521414	API	145982	20	£16.66	£15.15	£12.82
	3/8" BSP	RF4004400	Airwork	140849	4	£53.80	£47.07	£41.84
	-	V523838	API	145983	5	£51.33	£46.66	£39.48
	1/2" BSP	RF4004500	Airwork	140850	0	£64.57	£56.50	£50.22
	-	V521212	API	145984	6	£51.33	£46.66	£39.48

(All Prices Exclude VAT)
