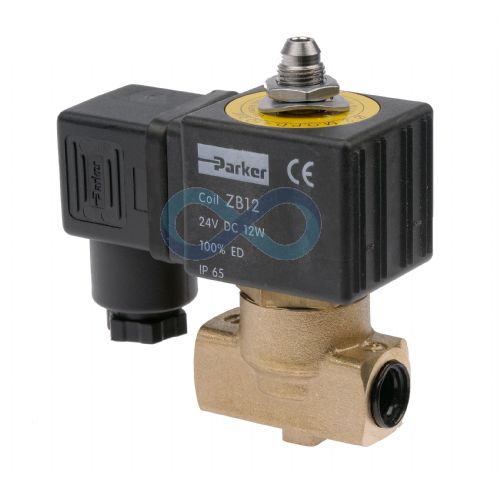

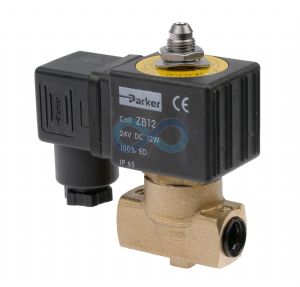

Solenoid valve 3 port (universal) 1/8" BSP Parker

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Direct operated solenoid valves that do not require a minimum pressure to operate. This is a universal valve which may be used as normally closed or normally open and for bypass and mixer applications.

Suitable for water, air, light oils and inert gases provided they are compatible with the materials of construction.

Cable plug (DIN 43650A) and coil must be ordered separately.

Mftrs list no: Valve - series 139, DC coil - ZB09, AC coil - ZB12

Technical Details

Pressure:

1.5mm orifice

0 - 10 bar

Temperature:

-10 to +140 deg C

media

+50 deg C max

ambient

Body material:

Brass

Seal material:

FPM (Viton)

Power consumption:

DC - 12W

AC - 25VA (inrush)

16VA (hold)

Protection:

IP65

(with cable plug fitted)

Datasheets

Solenoid valve 3 port (universal) 1/8 BSP Parker datasheet

Click Here

Prices (Click quantity for more availability info)

	Connection	Orifice	Order Code	Available	1+	5+	20+
Valve body
	1/8" BSPP	1.5mm	117631	9	£93.30	£78.37	£67.56
Coil & Cable plug
	Coil	12V DC	117638	6	£40.92	£34.37	£29.63
	Coil	24V DC	117639	10	£41.91	£35.20	£30.35
	Coil	24V AC	117635	7	£35.52	£29.84	£25.72
	Coil	115V AC	117636	10	£35.52	£29.84	£25.72
	Coil	230V AC	117637	7	£35.52	£29.84	£25.72
	Cable plug	-	106179	30	£3.42	£2.91	£2.32

(All Prices Exclude VAT)
