You are here - All Product > Vacuum Suction Cups > Suction cups
|
Description

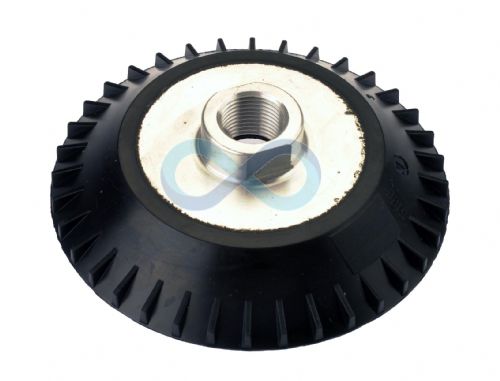

A range of suction cups with double sealing lips to provide extra security. The outer sealing lip comes into play when the suction cup is overloaded and also provides protection against wear. This design makes it possible to grip curved surfaces.
For adapters to allow direct mounting of suction cups on to vacuum generators see accessories chapter.
Main Data:
Temperature: -20 to +70 deg C
Material: Nitrile Rubber
Lifting forces shown are at 75% vacuum on a dry, flat surface.
Technical Details
|
Lifting Force
Diameter Inner Lip Outer Lip Connection
20mm 8N 16N M5
30mm 20N 35N M5
50mm 65N 95N 1/8" BSP
75mm 145N 215N 1/4" BSP
100mm 260N 380N 3/8" BSP
150mm 590N 850N 1/2" BSP
300mm 2300N 3200N 1" BSP
|
