Compressor hose assembly

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

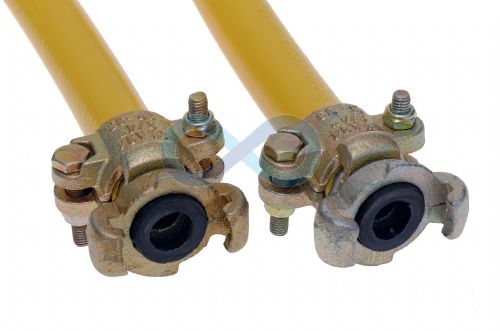

This product is a yellow cover compressor hose for use with pneumatic tubing and hosing. It conforms to BS 5118 part II 300 psi. For ease of use, this assembly Includes claw type couplings on each end of the hose. You can see below all the technical features of the product to make sure it conforms to your needs.

We can offer this hose assembly in PVC, rubber PVC alloy or rubber materials, depending on what you need.

Please note that if you plan on ordering this product, any orders made that count as pallet quantities (i.e. 50 or more assemblies) will qualify for free carriage.

Technical Details

Bore:

19mm

Coil length:

15 metres

Temperature:

-20 deg c to +60 deg c (PVC)

-30 deg c to +60 deg c (Rubber PVC Alloy)

-30 deg c to +70 deg c (Rubber)

Working Pressure:

20 Bar at 20 deg c (PVC)

20 Bar at 20 deg c (Rubber PVC Alloy)

20 Bar constant (Rubber)

N.B. There is no pressure drop at higher temperatures with rubber hose.

Prices (Click quantity for more availability info)

		Order Code	Available	1+	5+
PVC
	-	120052	2	£49.04	£44.84
	Pallet Price (based on 50 pieces)	120053	0	£2,032.05	£1,857.85
Rubber/PVC Alloy
	-	104242	53	£46.49	£42.91
	Pallet Price (based on 50 pieces)	120051	0	£2,324.36	£2,145.58
Rubber
	-	120054	13	£62.16	£56.83
	Pallet Price (based on 50 pieces)	120055	0	£3,442.54	£3,147.41

(All Prices Exclude VAT)
