Nobelair AS/R Reinforced Breathable Hose

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

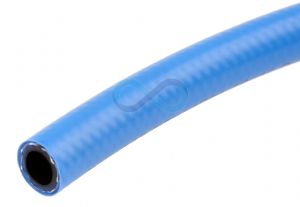

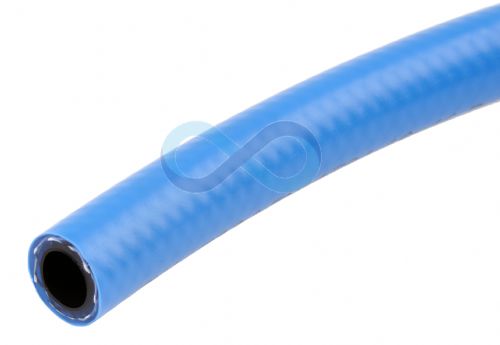

Nobelair AS/R reinforced anti static hose for breathable air is a top of the range hose, linking comfort of use to resistance in the most arduous conditions.

Due to its extreme flexibility and light weight it is very user friendly.

The well balanced reinforcement provides it with excellent dimensional stability.

The antistatic inner layer of this hose is a guarantee of safety if used in hazardous enviroments (paint booths, presence of hydro-carbons...). This capability is permament, obtained by the addition of carbon directly into the hose material.

This hose is silicone free.

Conforms with EN 14593 & EN 14594 (EN139:1994 is superseded by EN14593 for demand valve apparatus and EN14594 for constant flow)

For quick release couplings that conform to EN139 see rectus 95KS and 96KS - related products link at the bottom of this page.

Available on request:

Breathing air hose assemblies with 95KS or 96KS couplings and plugs

Technical Details

Temperature:

-20 to +70 Degree C

Max Pressure:

15 bar with a 4:1 safety factor.

Colour:

Blue (also in Green 10mm id)

Manufacturers Ref:

AS/R

Bend radius:

40mm (6mm id)

50mm (8mm id)

65mm (10mm id)

80mm (12.7mm id)

120mm (19mm id)

Datasheets

Nobelair AS/R Reinforced Breathable Hose datasheet

Click Here

Prices (Click quantity for more availability info)

	ID	OD	Coil	Order Code	Available	1+	5+
Nobelair AS/R - Blue
	6mm	12mm	50m	132606	1	£224.98	£167.54
	8mm	14mm	10m	128791	2	£45.68	£35.14
	8mm	14mm	20m	124811	2	£91.36	£70.28
	8mm	14mm	25m	124812	1	£130.52	£97.20
	8mm	14mm	30m	124813	1	£137.04	£105.42
	8mm	14mm	50m	124814	1	£261.03	£194.39
	10mm	16mm	10m	128792	5	£57.40	£44.15
	10mm	16mm	20m	124815	0	£114.80	£88.31
	10mm	16mm	25m	124816	0	£164.00	£122.13
	10mm	16mm	30m	124817	3	£172.20	£132.46
	10mm	16mm	50m	124818	5	£328.01	£244.26
	12.7mm	19mm	10m	132601	2	£68.83	£52.95
	12.7mm	19mm	20m	132602	0	£137.65	£105.88
	12.7mm	19mm	25m	132603	1	£172.06	£132.35
	12.7mm	19mm	30m	132604	0	£206.48	£158.83
	12.7mm	19mm	50m	132605	4	£391.99	£291.91
	19mm	28mm	50m	132607	1	£666.32	£496.20
Nobelair AS/R - Green
	10mm	16mm	50m	132608	1	£328.01	£244.26

(All Prices Exclude VAT)
