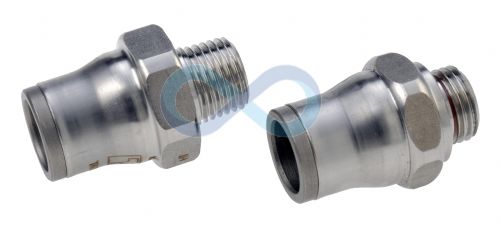

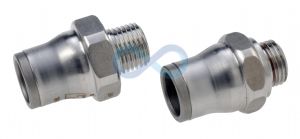

Legris LF3800 Male Stud Push in fitting

Legris LF3800 Male Stud Push in fitting

Legris LF3800 Male Stud Push in fitting

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Legris LF3800 stainless steel stud push in fitting available with male metric, BSPP, BSPT and NPT threads and to suit metric and imperial outside diameter tube.

Can be used with polymer and grooved stainless steel tubing.

Technical Details

Working Pressure:

Vacuum to 30 bar

Working Temperature:

-20 to +150 Deg C

Material:

316

Datasheets

Legris LF3800 Male Stud Push in fitting datasheet

Click Here

Prices (Click quantity for more availability info)

	OD Tube (mm)	Thread	Order Code	Available	1+	5+	Quantity
3801 BSPP
	4	M5	128315	0	£16.00	£13.83
	4	1/8"	128316	1	£19.73	£17.06
	6	M5	128317	12	£24.70	£21.35
	6	1/8"	128318	3	£21.22	£18.34
	6	1/4"	128319	0	£21.76	£18.81
	8	1/8"	128320	2	£26.33	£22.76
	8	1/4"	128321	4	£27.36	£23.65
	8	3/8"	128322	1	£33.72	£29.15
	10	1/4"	128323	1	£42.35	£36.61
	10	3/8"	128324	1	£46.21	£39.94
	12	1/4"	128325	0	£66.36	£57.36
	12	3/8"	128326	0	£65.36	£56.50
3805 BSPT
	4	1/8"	128271	1	£16.94	£14.65
	4	1/4"	128272	0	£18.02	£15.57
	6	1/8"	128273	0	£17.27	£14.92
	6	1/4"	128274	0	£19.64	£16.97
	8	1/8"	128275	0	£20.85	£18.03
	8	1/4"	128276	0	£21.85	£18.89
	8	3/8"	128277	0	£25.86	£22.35
	10	1/4"	128278	1	£32.72	£28.28
	10	3/8"	128279	0	£35.47	£30.66
	12	1/4"	128280	0	£50.65	£43.79
	12	3/8"	128281	0	£51.79	£44.76
	12	1/2"	128282	1	£53.67	£46.39
3805 NPT Metric
	4	1/8"	128296	0	£19.29	£16.68
	6	1/8"	128297	3	£19.47	£16.83
	6	1/4"	128298	0	£19.76	£17.08
	8	1/8"	128299	0	£21.96	£18.98
	8	1/4"	128300	0	£23.01	£19.89
	10	1/4"	128301	1	£31.78	£27.47
	10	3/8"	128302	0	£36.75	£31.77
	12	1/4"	128303	0	£52.98	£45.79
	12	3/8"	128304	1	£53.89	£46.59
	12	1/2"	128305	3	£54.26	£46.91
3805 NPT Imperial
	3/16"	1/8"	128306	0	£28.75	£24.85
	1/4"	1/8"	128308	0	£31.55	£27.27
	1/4"	1/4"	128309	8	£22.88	£19.78
	3/8"	1/4"	128310	1	£33.57	£29.02
	3/8"	3/8"	128311	0	£30.83	£26.65
	1/2"	1/4"	128312	0	£36.68	£31.70
	1/2"	3/8"	128313	0	£51.42	£44.44
	1/2"	1/2"	128314	4	£51.79	£44.76

(All Prices Exclude VAT)
