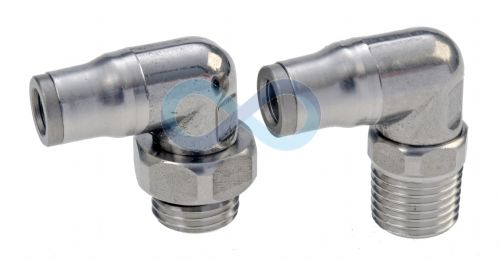

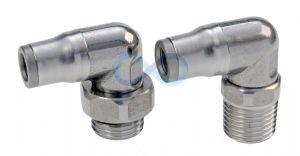

Legris LF3800 Compact Elbow Push in fitting

Legris LF3800 Compact Elbow Push in fitting

Legris LF3800 Compact Elbow Push in fitting

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Legris LF3800 stainless steel compact stud elbow push in fitting available with male metric, BSPP, BSPT and NPT threads to suit metric and imperial outside diameter tube.

Can be used with polymer and grooved stainless steel tubing.

Technical Details

Working Pressure:

Vacuum to 20 bar

Working Temperature:

-20 to +150 Deg C

Material:

316

Datasheets

Legris LF3800 Compact Elbow Push in fitting datasheet

Click Here

Prices (Click quantity for more availability info)

	OD Tube (mm)	Thread	Order Code	Available	1+	5+	Quantity
3879 BSPP
	4	1/8"	128498	0	£47.10	£40.72
	4	1/4"	128499	0	£49.89	£43.13
	6	1/8"	128500	0	£47.08	£40.70
	6	1/4"	128501	1	£47.87	£41.38
	8	1/8"	128502	0	£49.53	£42.82
	8	1/4"	128503	1	£51.25	£44.30
	8	3/8"	128504	0	£66.79	£57.73
	10	1/4"	128505	0	£78.42	£67.78
	10	3/8"	128506	0	£82.25	£71.10
	12	1/4"	128507	0	£99.63	£86.12
	12	3/8"	128508	0	£122.49	£105.88
	12	1/2"	128509	0	£123.89	£107.09
3889 BSPT
	4	1/8"	128457	0	£36.74	£31.75
	4	1/4"	128458	1	£46.97	£40.60
	6	1/8"	128459	1	£40.44	£34.96
	6	1/4"	128460	0	£48.38	£41.82
	8	1/8"	128461	0	£48.62	£42.02
	8	1/4"	128462	1	£49.89	£43.13
	10	1/4"	128463	1	£69.04	£59.68
	10	3/8"	128464	1	£73.64	£63.65
	12	1/4"	128465	0	£90.88	£78.56
	12	3/8"	128466	0	£97.08	£83.91
	12	1/2"	128467	0	£94.49	£81.68
3889 NPT Metric
	4	1/8"	128479	1	£41.19	£35.61
	6	1/8"	128480	1	£44.25	£38.25
	6	1/4"	128481	0	£33.83	£29.24
	8	1/8"	128482	1	£45.73	£39.53
	8	1/4"	128483	0	£44.92	£38.83
	10	1/4"	128484	0	£76.31	£65.96
	10	3/8"	128485	1	£93.19	£80.56
	12	1/4"	128486	0	£96.00	£82.99
	12	3/8"	128487	0	£101.77	£87.97
	12	1/2"	128488	4	£100.44	£86.82
3889 NPT Imperial
	1/4"	1/8"	128491	0	£41.78	£36.11
	1/4"	1/4"	128492	1	£46.85	£40.50
	3/8"	1/4"	128493	0	£91.23	£78.86
	3/8"	3/8"	128494	0	£75.28	£65.08
	1/2"	1/4"	128495	0	£95.44	£82.50
	1/2"	3/8"	128496	0	£102.30	£88.43
	1/2"	1/2"	128497	0	£98.34	£85.01

(All Prices Exclude VAT)
