Description

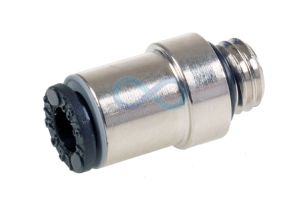

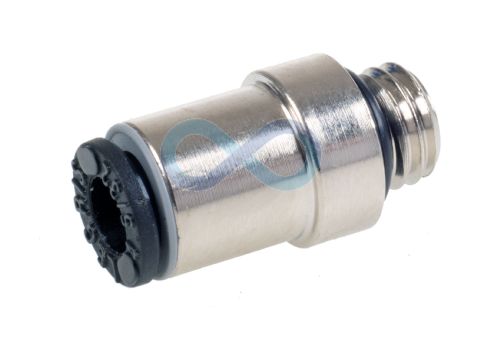

Legris LF3000 push in fitting - straight fitting with round body and metric male thread. To suit metric outside diameter tubing.

Technical Details

Compatible Fluids:

Compressed Air

Working Pressure:

Vacuum to 20 bar

Working Temperature:

-20 Deg C to +80 Deg C

Manufacturers Ref:

3181

Datasheets

Legris LF3000 Push In Stud - Male Metric Round datasheet

Click Here

Prices (Click quantity for more availability info)

Tube OD	Thread	Order Code	Available	1+	10+	50+
4mm	M5 x 0.8	147689	9	£4.36	£3.86	£3.45
-	M7 x 1	147690	5	£3.87	£3.42	£3.06
6mm	M5 x 0.8	147691	0	£3.20	£2.83	£2.53
-	M7 x 1	147692	0	£8.25	£7.29	£6.53

(All Prices Exclude VAT)
