You are here - All Product > Filter Regulators / Lubricators / Gauges > 3/8" - 1" BSP Aventics AS3 & AS5

Distributor 3/8

Distributor 3/8

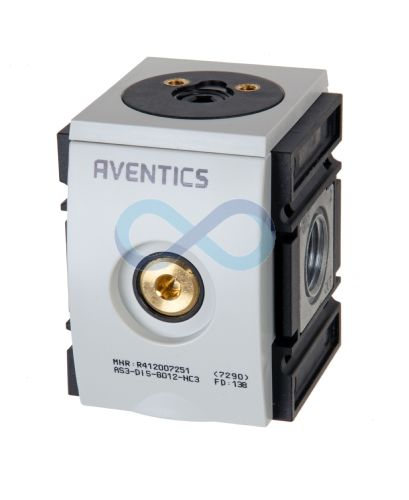

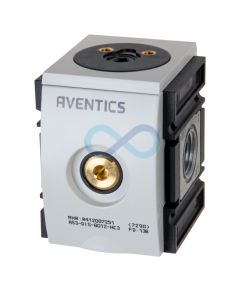

Distributor 3/8" & 1/2" BSP AS3 DIS, DIN, DIC

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Distributor block compatible with other components in the Aventics AS3 range.

Available in three types:

AS3-DIS 4 Additional outlets

AS3-DIN 4 additional outlets and including non return valve on downstream side. Recommended for use when a lubricator is fitted downstream.

AS3-DIC Distributor block with centre infeed. Designed for use in an assembly where the air is supplied in the middle.

AS3-DIS & AS3-DIC are both suitable for direct mounting of a PE1 and PM1 series pressure sensor (flange version).

Technical Details

Temperature:

-10 to +50 deg C

Pressure:

0 - 16 bar (DIS & DIC)

0.4 - 16 bar (DIN)

Flow Qn (1 - 2):

7250 l/min (DIS)

5100 l/min (DIN)

10,300 l/min (DIC)

Datasheets

Distributor 3/8 & 1/2 BSP AS3 DIS, DIN, DIC datasheet
Click Below

1) AS3-DIS

2) AS3-DIN

3) AS3-DIC

Prices (Click quantity for more availability info)

Type	Order Code	Available	1+	5+	Quantity
AS3-DIS 3/8" BSP	123074	2	£46.98	£41.45
AS3-DIS 1/2" BSP	123075	3	£46.98	£41.45
AS3-DIN 1/2" BSP	123077	0	£141.74	£125.07
AS3-DIC 1/2" BSP	123078	2	£63.73	£56.23

(All Prices Exclude VAT)
