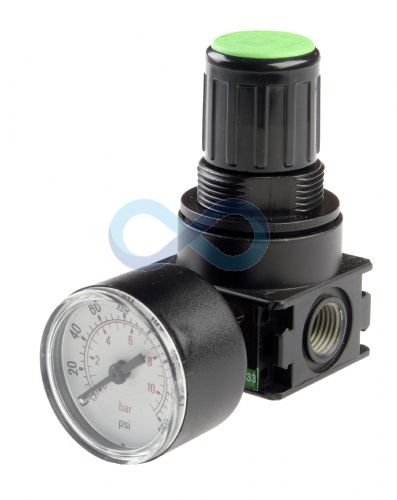

Regulator NL1 1/4" BSP

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Diaphragm, relieving type pressure regulator suitable for compressed air. Available with three different output ranges and in standard or high capactiy version.

Assembly kit can be used can be used for modular assembly with other components in the NL1 range.

Two different types of wall mount (see related products) can be ordered separately.

Available on request: Regulator with 1/8" BSP Connection.

Technical Details

Flow:

600 l/min (standard)

1000 l/min (high capacity)

Connection:

1/4" BSP (Main)

1/8" BSP (Gauge)

Max inlet:

16 bar

Temperature:

50 deg C

Manufacturers ref:

NL1-RGS

Datasheets

Regulator NL1 1/4 BSP datasheet
Click Below

1) nl1-rgs

2) nl1-rgs_hc

Prices (Click quantity for more availability info)

	Output range	Order Code	Available	1+	5+
Regulator - Standard
	0.1 - 3 bar	102874	5	£39.23	£34.61
	0.2 - 6 bar	102875	9	£39.23	£34.61
	0.5 - 10 bar	102876	10	£39.23	£34.61
Regulator - High Capacity
	0.1 - 3 bar	102877	1	£59.40	£52.41
	0.2 - 6 bar	102878	2	£59.40	£52.41
	0.5 - 10 bar	102879	2	£59.40	£52.41
Accessories
	Gauge (50mm, 4 bar)	120081	7	£6.21	£4.73
	Gauge (50mm, 7 bar)	120082	12	£6.21	£4.73
	Gauge (50mm, 11 bar)	120083	28	£6.21	£4.73
	Angle bracket	102897	18	£8.99	£7.93
	Control panel nut	102898	21	£4.21	£3.72
	Assembly kit	102899	5	£1.97	£1.74

(All Prices Exclude VAT)
