You are here - All Product > Filter Regulators / Lubricators / Gauges > 1/4" BSP Aventics NL1
|
Related Products
Description

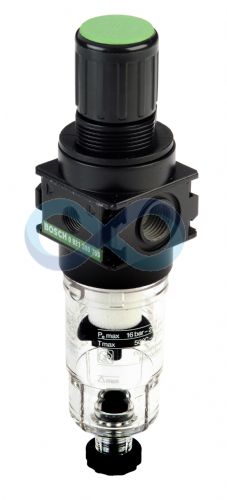

Combined Filter/Regulator suitable for use with compressed air.
Regulator is diaphragm type (relieving).
Available with semi or fully automatic drain and with metal bowl or polycarbonate bowl.
Pressure gauge must be ordered separately.
Guard for polycarbonate bowl can be ordered separately if required.
Assembly kit can be used can be used for modular assembly with other components in the NL1 range.
Two types of wall mount bracket (see related products) can be ordered separately.
Technical Details
|
Supply pressure: 0.5 - 16 bar (semi automatic drain) 2 - 16 bar (automatic drain)
Outlet pressure: 10 bar
Temperature: 50 deg C
Flow: 950 l/min
Filtration: 5 micron
Connection: 1/4" BSP (Main) 1/8" BSP (Gauge)
Manufacturers ref: NL1-FRE
|
Datasheets  Click Here |
