Description

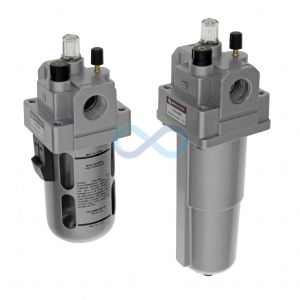

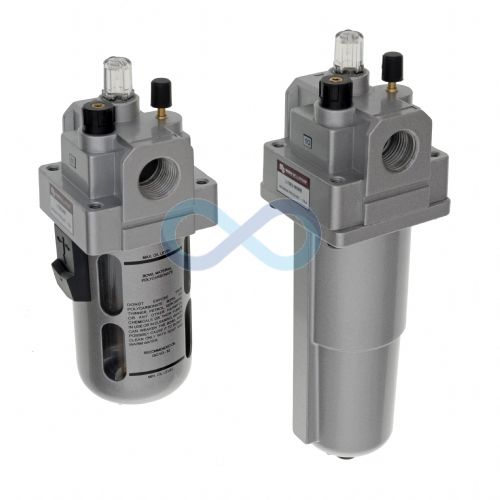

Marsh Oil Fog/Mist type lubricator designed to provide lubrication in compressed airlines supplying tools and other types of pneumatic components which require additional lubrication in the air supply.

The lubrication rate can be adjusted and is also proportional to air flow.

There is an option of polycarbonate bowl (10 bar max) or metal bowl (20 bar max).

These lubricators are suitable for modular mounting with other components in this range (same body size).

The lubricator is supplied complete with a wall mount bracket.

Whatever your requirements for lubricator or other types of component in this range please contact us - the team at Duncan Rogers is keen to help.

Technical Details

Model

Port size

Flow rate

L13

1/4" BSP

1350 l/min

L14

3/8" BSP

3000 l/min

L15

1/2" BSP

5650 l/min

L17

1" BSP

9000 l/min

Datasheets

Click Here

Prices (Click quantity for more availability info)

	Connection	Series	Order Code	Available	1+	5+
Poly Bowl with guard 10 bar
	1/4" BSP	L13	139080	2	£27.49	£21.38
	3/8" BSP	L14	139081	2	£45.79	£35.61
	1/2" BSP	L15	139082	2	£56.15	£43.67
	1" BSP	L17	139083	0	£137.61	£107.03
Metal bowl - 20 bar
	1/4" BSP	L13	139084	0	£32.72	£25.45
	3/8" BSP	L14	139085	0	£50.32	£39.14
	1/2" BSP	L15	139086	2	£70.92	£55.16
	1" BSP	L17	139087	0	£126.22	£98.17

(All Prices Exclude VAT)
