Marsh Filter 1/4" - 1" BSP

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

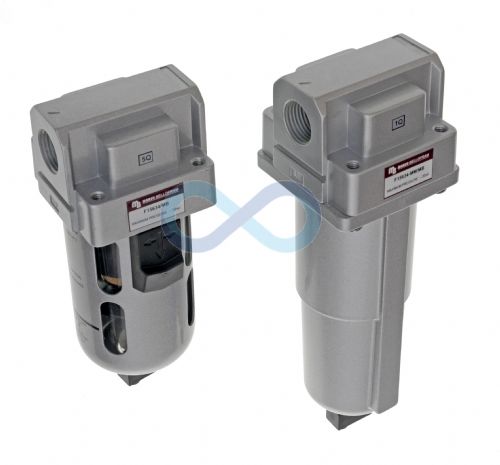

Marsh compressed air filter range 1/4" to 1" BSP connections suitable for a wide range of applications in industry.

Options include polycarbonate bowl with guard (10 bar) or metal bowl (20 bar) and there is a choice of manual or automatic drain.

Filtration to 50 micron (1, 5, 25, 40 or 100 micron available on request) these compressed air filters are suitable for many applications including air tools, packaging machines, control systems, pneumatic cylinders and much more.

Filter is supplied including a wall mount bracket.

These filters can be modular mounted with other components in this range - same body size.

Whatever your requirements for filters or air preparation equipment in general please contact us - the team at Duncan Rogers will be keen to help you.

Technical Details

Model

Connection

Flow rate

F13

1/4" BSP

800 l/min

F14

3/8" BSP

2250 l/min

F15

1/2" BSP

3500 l/min

F17

1" BSP

6500 l/min

Datasheets

Click Here

Prices (Click quantity for more availability info)

	Connection	Series	Order Code	Available	1+	5+
Poly Bowl with guard - Manual drain - 10 bar
	1/4" BSP	F13	139088	2	£22.63	£17.60
	3/8" BSP	F14	139089	2	£38.37	£29.85
	1/2" BSP	F15	139090	2	£41.46	£32.25
	1" BSP	F17	139091	1	£118.95	£92.52
Metal bowl - Manual Drain - 20 bar
	1/4" BSP	F13	139092	2	£31.15	£24.23
	3/8" BSP	F14	139093	0	£51.57	£40.11
	1" BSP	F17	139095	0	£156.43	£121.67
Poly Bowl with guard - Auto drain - 10 bar
	3/8" BSP	F14	139096	2	£71.86	£55.89
	1/2" BSP	F15	139097	2	£74.88	£58.24
	1" BSP	F17	139098	1	£144.52	£112.41
Metal bowl - Auto Drain - 20 bar
	3/8" BSP	F14	139099	0	£86.76	£67.48
	1/2" BSP	F15	139100	2	£115.92	£90.16
	1" BSP	F17	139101	0	£191.61	£149.03

(All Prices Exclude VAT)
