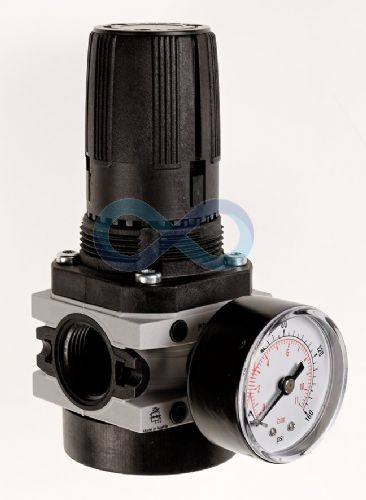

Parker P3X Series Moduflex Lite Regulator

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Relieving type pressure regulator to suit a wide range of applications in industry.

Made from ultra light weight technopolymers which makes it up to 45% lighter than conventional units and corrosion free. Can be used in place of stainless steel product in many applications.

Supplied with gauge (replacement gauges are available separately).

Available in stardard and a lockable version.

The lockable version can be locked using key lock.

Key lock (for lockable version only) must be ordered separately.

Suitable for modular connection with other components in the P3X range.

Available on request:
Non relieving regulator
NPT connection ports (1/2" only)

Technical Details

Max Inlet Pressure:

16 bar

Temperature Range:

-10 Deg C to +60 Deg C

Flow:

1/2" BSPP Port:

122 l/s

3/4" BSPP Port:

134 l/s

Gauge port (x2):

1/4" BSPP

Manufacturers Ref:P3XRA

Datasheets

Parker P3X Series Moduflex Lite Regulator datasheet
Click Below

1) P3X Regulator

2) P3X Moduflex

Prices (Click quantity for more availability info)

		Outlet		Order Code	Available	1+	5+
Regulator 1/2" BSPP - Standard
	-	0-4 bar	-	148071	0	£82.90	£73.34
	-	0-8 bar	-	148072	13	£83.39	£73.77
	-	0-16 bar	-	148073	5	£83.39	£73.77
Regulator 3/4" BSPP - Standard
	-	0-4 bar	-	148074	0	£83.39	£73.77
	-	0-8 bar	-	148075	6	£82.90	£73.34
	-	0-16 bar	-	148076	2	£82.90	£73.34
Regulator 1/2" BSPP - Lockable
	-	0-8 bar	-	148077	0	£90.53	£80.08
	-	0-16 bar	-	148078	0	£89.97	£79.59
Replacement Gauge (50mm dial)
	0-4 bar	-	-	120119	6	£6.21	£4.73
	0-7 bar	-	-	120120	8	£6.21	£4.73
	0-11 bar	-	-	120121	37	£6.21	£4.73
	0-21 bar	-	-	120123	6	£6.21	£4.73
Service Kits
	Wall Bracket S/S	-	-	125727	18	£10.08	£8.92
	Panel mounting kit	-	-	125728	1	£17.34	£15.34
	Key lock (for lockable version)	-	-	125729	2	£24.79	£21.93
	Diaphragm kit(relieving)	-	-	125730	2	£15.71	£13.89
	P3X connecting kit	-	-	125743	10	£8.08	£7.15

(All Prices Exclude VAT)
