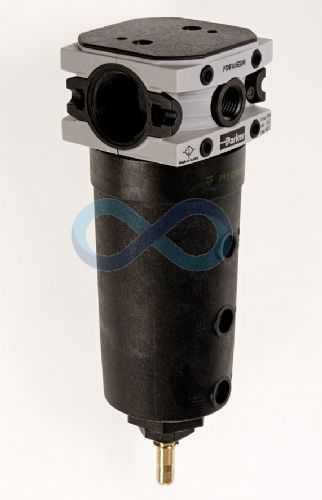

Parker P3X Series Moduflex Lite Filter

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Parker P3X series moduflex lite compact particulate filter with 5 micron element.

Made from ultra light weight technopolymers which makes it up to 45% lighter than conventional units and corrosion free. Can be used in place of stainless steel product in many applications.

Available with combined manual/semi automatic or automatic drain.

Suitable for modular connection with other components in the P3X range.

Available on request:
40 micron filter
1 micron dust filter
Coalescing filter
Active carbon filter (adsorber)
NPT connection ports (1/2" only)

Technical Details

Max pressure:

16 bar

Filter:

5 micron

Temperature:

Semi Automatic:

-40 to 60 Deg C

Automatic:

-10 to 60 Deg C

Flow:

1/2" BSPP Port:

55 l/s

3/4" BSPP Port:

57 l/s

Manufacturers Ref:

P3XFA

Datasheets

Parker P3X Series Moduflex Lite Filter datasheet
Click Below

1) p3x_filter

2) P3X_Moduflex

Prices (Click quantity for more availability info)

	Drain Type	Order Code	Available	1+	5+
Filter 1/2" BSPP
	Semi Automatic	125715	4	£64.17	£56.76
	Automatic	125716	2	£100.26	£88.69
Filter 3/4" BSPP
	Semi Automatic	125717	1	£64.17	£56.76
	Automatic	125718	1	£99.69	£88.19
Service Kits
	5 micron element kit	125719	2	£10.53	£9.31
	40 micron element kit	125720	2	£10.58	£9.36
	Bowl kit w/ semi auto drain	125721	0	£27.42	£24.26
	Bowl kit w/ auto drain	125722	0	£53.78	£47.58
	1 micron element kit	125723	2	£49.39	£43.69
	Wall Bracket S/S	125727	16	£10.08	£8.92
	P3X connecting kit	125743	8	£8.08	£7.15

(All Prices Exclude VAT)
