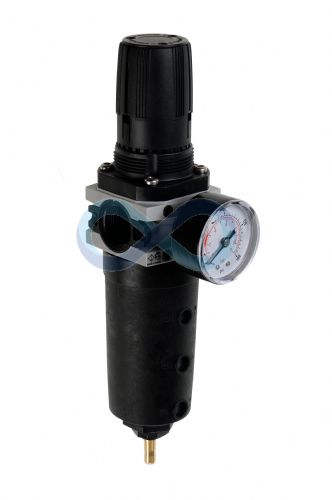

Parker P3X Series Moduflex Lite Filter/Regulator

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Combined filter/regulator unit, avaiable with 1/2" or 3/4" BSPP ports.

Made from ultra light weight technopolymers which makes it up to 45% lighter than conventional units and corrosion free. Can be used in place of stainless steel product in many applications.

Fitted with a 5 micron element and available with semi automatic or automatic drain.

Regulator is self relieving type.

Supplied with gauge (replacement gauges are available separately).

Suitable for modular connection with other components in the P3X range.

Available on request:
Lockable version
NPT Connection ports (1/2" only)
0-4 bar & 0-16 bar versions
Non relieving regulator
40 micron element

Technical Details

Output Pressure:

0-8 bar

Max inlet:

16 bar

Temperature:

Semi Automatic:

-40 to 60 Deg C

Automatic:

-10 to 60 Deg C

Flow:

1/2" Port BSPP:

111 l/s

3/4" Port BSPP:

113 l/s

Gauge port (x2):

1/4" BSPP

Manufacturers Ref:

P3XEA

Datasheets

Parker P3X Series Moduflex Lite Filter/Regulator datasheet
Click Below

1) P3X Filter Regulator

2) P3X Moduflex

Prices (Click quantity for more availability info)

	Drain type	Order Code	Available	1+	5+
Filter-Regulator 1/2" BSPP
	Semi Automatic	148079	6	£115.96	£102.58
	Automatic	148080	6	£152.62	£135.01
Filter-Regulator 3/4" BSPP
	Semi Automatic	148081	1	£115.96	£102.58
	Automatic	148082	3	£151.73	£134.22
Replacement Gauge (50mm dial)
	0-11 bar	120121	37	£6.21	£4.73
Service Kits
	5 micron Element Kit	125719	2	£10.53	£9.31
	40 micron Element Kit	125720	2	£10.58	£9.36
	Bowl Kit w/ Semi Auto Drain	125721	0	£27.42	£24.26
	Bowl Kit w/ Auto Drain	125722	0	£53.78	£47.58
	Diaphragm Kit (Relieving)	125730	2	£15.71	£13.89
	Wall Bracket S/S	125727	18	£10.08	£8.92
	Panel Mounting Nut	125728	1	£17.34	£15.34
	P3X Connecting Kit	125743	10	£8.08	£7.15

(All Prices Exclude VAT)
