You are here - All Product > Air Filters / Drain Valves > Oil Water Separator
|
Description

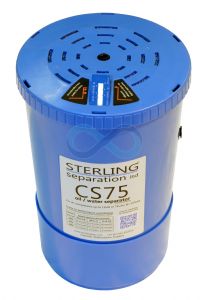

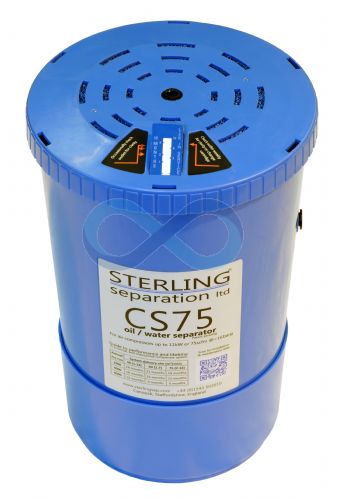

CS75 oil/water separator can be fitted on the same bracket as SEP 60 ST and can also be floor mounted.
Unlike SEP 60 ST, CS75 is not a disposable product and replacement filter cartridges can be purchased instead of replacing the whole product.
CS75 has been carefully designed to clean condenstate from a compressor system of up to 75 cfm (2.1 m3/min) to as low as 5 ppm oil in water - suitable for discharge to sewer.
Can be wall or floor mounted and suitable for 11kW compressors.
10 year warranty.
Note: acceptable levels vary and it is the users responsibility to ensure compliance with local regulations
Important - always use automatic drains and set timed drains to very short open time. Use of manual drains could flood the CS75.
Mineral or blended synthetic oil & based on compressor oil carry-over of no more than 5 mg/m3
Technical Details
|
Nominal Duty: 75 cfm (2.1 m3/min) @16 bar
Service Life: Please see datasheet for information Annual replacement is recommend.
Connection:
Inlet: 6mm push in
Outlet: 10mm push in |
Datasheets
1) CS75
2) CS75 Maintenance
|
