Description

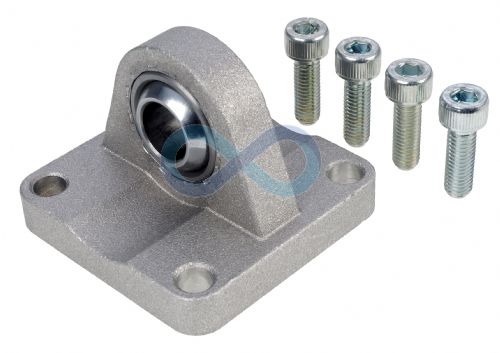

Rear swivel eye bracket MP6 - mounting bracket to suit any pneumatic cylinder which conforms to the ISO 15552 VDMA standard. Designed for articulated mounting.

This bracket can be combined with Clevis Bracket AB6.

Two different types are available - one is aluminium diecast and one is aluminium forged (Aventics). The advantage of the forged aluminium version is that it is 2-4 times as strong as a the diecast aluminium version. The video link shows this being demonstrated.

The Bracket MP6 is supplied including 4 mounting screws.

At Duncan Rogers we hold a vast range of ISO VDMA pneumatic cylinders and their associated mountings in stock. We are always keen to hear from you and your standard and non standard requirements alike - please contact us and a member of our team will be happy to help.

Watch this Video.

Technical Details

Manufacturers Ref:

CMS..ALIS+VP MP6 (diecast)

Rear eye MP6 Series CM1 (forged)

Material (diecast):

Body - surface treated aluminium

Swivel bearing (to DIN648K) - hardened steel

Material (forged):

Body - aluminium (forged)

Screws - Galvanised steel

Bearing - stainless steel

Datasheets

Swivel eye bracket MP6 - VDMA Cylinder datasheet
Click Below

1) Cyl_Mount_CMS_MP6

2) Aventics_Clevis_Mount_MP6

Prices (Click quantity for more availability info)

Pin (mm)	Bore (mm)	Type	Order Code	Available	1+	5+
10	32	Diecast	105961	2	£47.76	£40.33
10	32	Forged	140365	0	£60.70	£50.99
12	40	Diecast	105962	2	£49.57	£41.86
12	40	Forged	140366	0	£68.04	£57.15
16	50	Diecast	105963	2	£54.49	£46.02
16	50	Forged	140367	0	£79.10	£66.45
16	63	Diecast	105964	1	£71.95	£60.76
16	63	Forged	140368	2	£92.00	£77.28
20	80	Diecast	105965	2	£85.75	£72.41
20	80	Forged	140369	0	£136.70	£114.83
20	100	Diecast	105966	0	£154.50	£130.47
20	100	Forged	140370	2	£156.01	£131.05
30	125	Diecast	133191	0	£267.23	£225.66
30	125	Forged	140371	0	£314.13	£263.87

(All Prices Exclude VAT)
