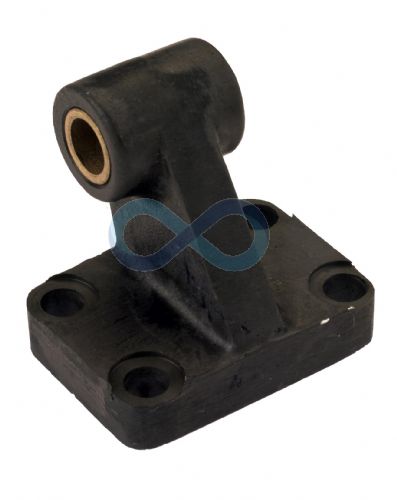

Pivot bracket with rigid bearing - VDMA Cylinder

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Intended for flexible mounting of cylinder. Conforms to CETOP RP 107 ,VDMA, AFNOR.
This bracket is not suitable for mounting directly on the cylinder and is intended to be combined with Clevis bracket MP2 (with same pin size).

Material: Aluminium

Technical Details

Manufacturers Ref:

AR4156

Datasheets

Pivot bracket with rigid bearing - VDMA Cylinder datasheet

Click Here

Prices (Click quantity for more availability info)

Pin (mm)	Bore (mm)	Order Code	Available	1+	5+
10	32	105881	0	£20.26	£17.11
12	40	105882	0	£27.76	£23.44
12	50	105883	0	£30.33	£25.61
16	63	105884	2	£44.20	£37.33
16	80	105885	2	£45.92	£38.77
20	100	105886	2	£71.09	£60.03
25	125	133188	0	£95.58	£80.72

(All Prices Exclude VAT)
