Angle Bracket MS1 - VDMA Cylinder

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

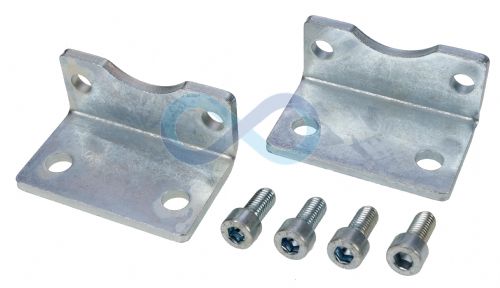

Intended for fixed mounting of cylinder. The angle bracket is supplied singly with mounting screws and can be fitted to the front or rear end cover. Conforms to ISO MS1, VDMA, AFNOR.

Material: Zinc-plated steel

Availble on request: foot mount for 160, 200, 250, 320mm bore cylinders

Technical Details

Manufacturers Ref:

PB..AQIS+V

MS1

Datasheets

Angle Bracket MS1 - VDMA Cylinder datasheet

Click Here

Prices (Click quantity for more availability info)

	Bore (mm)	Order Code	Available	1+	5+
* Order 2 pcs per cylinder *
	32mm	147984	19	£5.27	£4.45
	40mm	147985	4	£5.68	£4.80
	50mm	147986	4	£8.00	£6.76
	63mm	147987	6	£13.34	£11.26
	80mm	147988	3	£18.32	£15.47
	100mm	147989	4	£21.20	£17.90
	125mm	147990	0	£73.89	£62.40

(All Prices Exclude VAT)
