Air motors - LZB33L - 0.25 kw

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

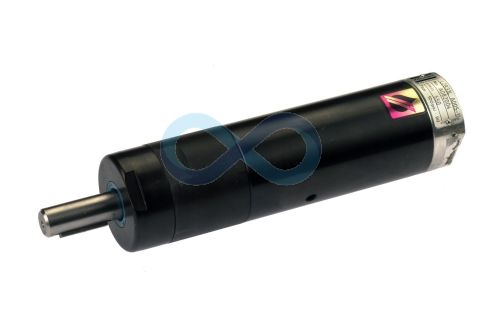

A range of reversible, lubrication free vane type air motors with a wide range of gear ratios to suit many different applications in indsutry.

All air motors are fitted with a keyed shaft. A foot or flange mounting can be ordered separately.

Available on request

Air motors with screwed shaft
Non reversible air motors
All stainless steel air motors
Vane motors with larger output (up to 3.7 kw)
Piston motors

Technical Details

Speed @

Torque @

Min start

Free

Air

Output

max o/p

Torque

Speed

cons

0.25 kw

7000 RPM

0.34 Nm

0.46 Nm

13300 RPM

7.9 l/s

0.25 kw

1960 RPM

1.2 Nm

1.6 Nm

3800 RPM

7.9 l/s

0.25 kw

1090 RPM

2.2 Nm

3.0 Nm

2000 RPM

7.9 l/s

0.25 kw

880 RPM

2.7 Nm

3.7 Nm

1700 RPM

7.9 l/s

0.25 kw

430 RPM

5.4 Nm

7.0 Nm

800 RPM

7.9 l/s

0.25 kw

240 RPM

9.8 Nm

12.6 Nm

450 RPM

7.9 l/s

0.25 kw

190 RPM

12.1 Nm

15.6 Nm

360 RPM

7.9 l/s

0.24 kw

120 RPM

19.0 Nm

20.0 Nm

230 RPM

7.9 l/s

Prices (Click quantity for more availability info)

	Output	Speed @ max o/p	Mftrs List No	Order Code	Available	1+	5+
Air motor LZB33L
	0.25 kw	13300 RPM	LZB33-L-AR150-11	134008	0	£1,720.49	£1,583.93
	0.25 kw	3800 RPM	LZB33-L-AR043-11	134009	0	£1,720.49	£1,583.93
	0.25 kw	2000 RPM	LZB33-L-AR024-11	134010	0	£1,720.49	£1,583.93
	0.25 kw	1700 RPM	LZB33-L-AR019-11	134011	0	£1,720.49	£1,583.93
	0.25 kw	800 RPM	LZB33-L-AR009-11	134012	0	£2,022.13	£1,861.63
	0.25 kw	450 RPM	LZB33-L-AR005-11	134013	0	£2,010.97	£1,851.35
	0.25 kw	360 RPM	LZB33-L-AR004-11	134014	0	£2,010.97	£1,851.35
	0.24 kw	230 RPM	LZB33-L-AR0026-11	134015	0	£2,256.74	£2,077.62
Flange mount
	-	-	-	111265	1	£113.16	£99.23
Foot mount
	-	-	-	111266	0	£193.46	£169.65

(All Prices Exclude VAT)
