Description

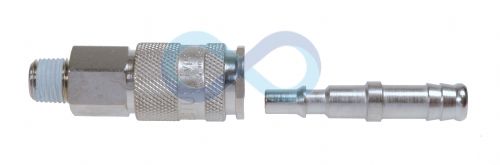

Rectus quick release couplings series 18KA. This is a robust industrial coupling designed for high flow and low pressure drop.
The coupling is single shut off type which means that the air on the downstream side is vented to atmosphere when the plug is disconnected.
To connect simply push in the plug – to disconnect slide back the steel sleeve.
The Rectus series 18KA is suitable for compressed air and vacuum up to 96%.
For a safety version of this coupling see related products section.
Rectus series 18KA is in accordance with ISO 6150C 5.5mm and interchanges with Cejn 291 and Oetiker.
Whatever your requirements for Rectus or other types of quick release coupling the team at Duncan Rogers is keen to help – please contact us.
Technical Details
|
Max pressure: 35 bar
Nominal diameter: 5.5mm
Flow rate: 1250 l/min (1 bar pressure drop)
Material: Brass/Steel nickel plated (coupling) steel nickel plated (plug) NBR seals
Connecting force: 40N (0 bar) 110N (6 bar)
Vacuum rating: 96% |
Datasheets  Click Here |
