Description

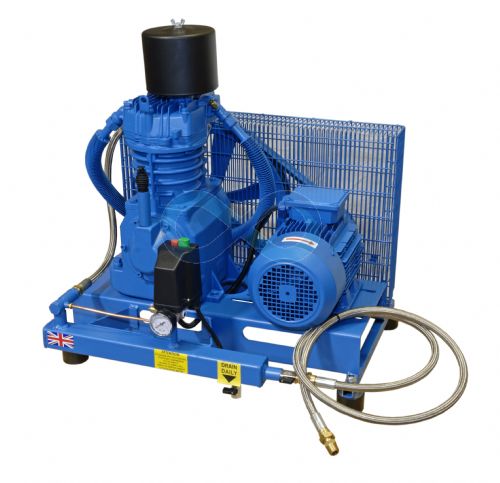

Base mounted air compressor with ALL cast iron slow running pump.

This is an industrial rated machine suitable for a wide range of applications.

Ideal for situations where space is limited, a backup machine or temporary machine to cover a breakdown of a main compressor. Easy to transport and install.

The compressor is supplied complete with a set of 4 anti-vibration mounts and a 2 metre hose for connection to the air system or receiver.

The 2 metre hose is ptfe with stainless steel overbraid with a very high temperature rating.

The pump is made by Campbell Hausfeld (USA company) who have a long tradition for manufacturing top quality and reliable products.

At Duncan Rogers we offer a wide range of industrial rated compressors designed for business that depends on their compressed air supply. Whatever your requirements please contact us - we are keen to hear from you.

Technical Details

Model:

CH55-BASE

Pump ref:

TF2111

Motor:

5.5HP 3 phase

Pump speed:

700 RPM

Max pressure:

11 bar

Free air delivery:

19 cfm

Dimensions LxWxH (mm):

750 x 550 x 840

Weight:

122 kg

Outlet:

1/2" BSPT Male

Datasheets

Air Compressor 5.5HP 3 Phase Base Mount datasheet

Click Here

Prices (Click quantity for more availability info)

	Model	Motor	Phase	Order Code	Available	1+
Base mount air compressor
	CH55-BASE	5.5HP	3 phase	108375	0	£2,158.10
Spare Parts
	V Belt B59/17x1500Li (2 per m/c)	-	-	133215	3	£28.32
	Pressure switch 10/16A	-	-	133212	4	£191.28
	Non return valve 1/2"	-	-	132621	11	£25.40
	Non return valve seal kit	-	-	132624	8	£9.36
	Air filter element	-	-	133214	11	£38.73

(All Prices Exclude VAT)
