EC881 2 Wire Hydraulic Hose EN857 Type 2SC

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

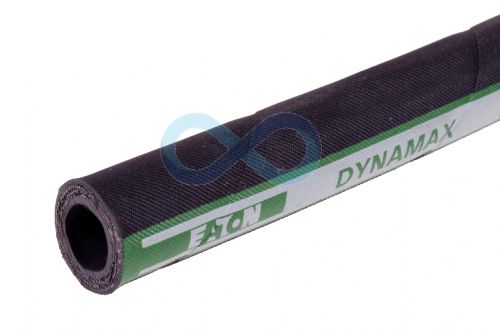

Eaton DYNAMAX EC881, a new high performing two wire braided hose qualified to 1 Milion impulse cycles.

Impluse cycles are key measure in the life expectancy and overall quality of a hydraulic hose.

Compared to standard EN857 2SC hoses, which are qualified to 200 000 cycles EC881 exceed the standard by 5X and provides exceptional performance in tough applications.

EC881 also exceed the 2SC pressure ratings which extends the range in which hydraulic systems this hose can be used.

Pressure shown is maximum operating pressure with 4:1 safety factor.

Prices shown are per metre.

Swage charts are available on request - please quote ref LI1001

Technical Details

Temperature:

-46 to +126 deg C

Construction:

Synthetic Rubber Tube

2 Wire Braid Reinforcement

DURA-TUFF Synthetic Rubber Cover

Datasheets

EC881 2 Wire Hydraulic Hose EN857 Type 2SC datasheet

Click Here

Prices (Click quantity for more availability info)

Size (1/16")	ID (mm)	Min Bend Radius	Pressure	Order Code	Available	1+	10+	50+
-04	6.4mm	33mm	450 bar	140231	113	£11.39	£9.45	£8.07
-06	9.5mm	42mm	400 bar	140232	36	£12.57	£10.43	£8.92
-08	12.7mm	60mm	360 bar	140233	94	£13.87	£11.51	£9.83
-10	15.9mm	68mm	350 bar	140234	44	£15.86	£13.16	£11.25
-12	19.0mm	80mm	330 bar	140235	64	£18.26	£15.15	£12.95
-16	25.4mm	150mm	280 bar	140236	48	£27.45	£22.77	£19.46

(All Prices Exclude VAT)
