FC300 AQP 1 wire SAE100R5 Textile Braid

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

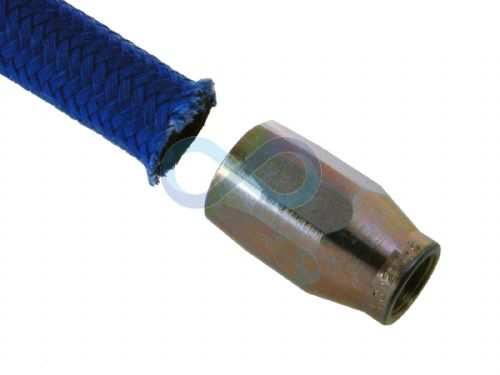

Hose with polyester and wire braided reinforcement and polyester braided cover.

AQP Compressor hose from Aeroquip is rated for high temperatures and is especially suitable for use in compressor applications. With a maximum temperature of 121 deg C FC300 (compared to 70 deg C for most rubber hoses) FC300 will remain flexible and last up to five times longer.

FC300 hose can be used with Reusable end fittings (ordered separately) and no special tools are required.

One socket (see below) and one insert (see fittings section) are required for each end.

For assembly instructions for FC300 hose and fittings see Appendix

Available on request:
Custom made assemblies using FC300 hose
Other types of hose for high pressure applications

Pressure shown is maximum operating pressure with 4:1 safety factor.

This hose has DNV-GL type approval - see links below for certificate

Technical Details

Temperature:

-49 to +150 deg C

+121 deg C (max for air)

Datasheets

FC300 AQP 1 wire SAE100R5 Textile Braid datasheet
Click Below

1) FC300

2) FC300GLDNVExp170420

Prices (Click quantity for more availability info)

	Hose Size	ID	OD	Pressure	Order Code	Available	1+	5+
FC300 Hose - supplied by the metre
	-04	0.19"	0.52"	207 bar	104381	29	£45.71	£32.00
	-05	0.25"	0.58"	207 bar	104382	2	£50.56	£35.39
	-06	0.31"	0.68"	155 bar	104383	28	£50.36	£35.25
	-08	0.41"	0.77"	138 bar	104384	0	£58.44	£40.90
	-10	0.50"	0.92"	121 bar	104385	0	£65.11	£45.58
	-12	0.62"	1.08"	103 bar	104386	0	£84.47	£59.13
	-16	0.88"	1.27"	55 bar	104387	0	£95.75	£67.02
	-20	1.12"	1.50"	43 bar	104388	0	£125.50	£87.85
	-24	1.38"	1.75"	34 bar	104389	2	£150.13	£105.09
	-32	1.81"	2.22"	21 bar	104390	2	£234.55	£164.18
FC300 Sockets
	-04	-	-	-	104391	20	£4.10	£2.87
	-05	-	-	-	104392	17	£5.11	£3.58
	-06	-	-	-	104393	6	£5.73	£4.01
	-08	-	-	-	104394	0	£7.35	£5.15
	-10	-	-	-	104395	17	£10.14	£7.10
	-12	-	-	-	104396	0	£13.75	£9.62
	-16	-	-	-	104397	0	£15.29	£10.70
	-20	-	-	-	104398	7	£24.52	£17.17
	-24	-	-	-	104399	10	£29.45	£20.62
	-32	-	-	-	104400	25	£88.73	£62.11

(All Prices Exclude VAT)
