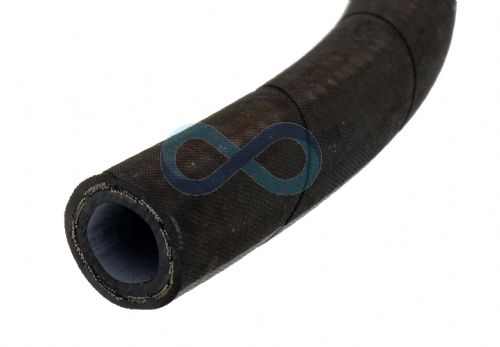

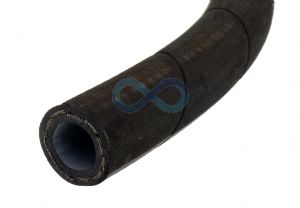

Hypress 1 Wire Hose SAE100R1AT EN853/1SN

Inserts - Standard

1SC/2SC/1SN Swage Ferrules

Related Products

• Printer Friendly Page
• Skip to Technical Details
• Skip to Description
• Skip to Prices

Description

Synthetic NBR Rubber tube with 1-wire braid reinforcement. Suitable for hydraulic systems with petroleum and water-glycol base fluids, for fuel and lubricating oils, air and water.

EN853/1SN Exceeds SAE 100R1AT

Pressure shown is maximum operating pressure with 4:1 safety factor.

Prices shown are per metre

Available with smooth cover (TFD2012 - 3/16" to 1") and wrapped cover (TFD0012 - 1/4" to 2")

Swage charts on request - please quote LI1077 for TFD0011 and LI1027 for TFD0012

Technical Details

Manufacturers Ref: TFD2012 (Smooth Cover) TFD0012 (Wrapped Cover) Temperature Range: -40 to 100 Deg C

Datasheets Click Below 1) TFD2012 2) TFD0012

Prices (Click quantity for more availability info)

	Size (1/16")	ID (mm)	Pressure	Order Code	Available	1+	10+	50+	Quantity
TFD2012 (Smooth Cover)
	-03	3/16" (4.8mm)	250 bar	147591	0	£7.70	£6.41	£5.50		Add to Basket
	-04	1/4" (6.4mm)	225 bar	147592	0	£6.17	£5.14	£4.40		Add to Basket
	-05	5/16" (8.0mm)	215 bar	147593	0	£9.03	£7.52	£6.45		Add to Basket
	-06	3/8" (9.5mm)	180 bar	147594	0	£6.87	£5.73	£4.91		Add to Basket
	-08	1/2" (12.7mm)	160 bar	147595	34	£8.03	£6.70	£5.74		Add to Basket
	-10	5/8" (16.0mm)	130 bar	147596	0	£12.08	£10.06	£8.63		Add to Basket
	-12	3/4" (19.0mm)	105 bar	147597	0	£12.29	£10.24	£8.78		Add to Basket
	-16	1" (25.4mm)	88 bar	147598	0	£20.54	£17.12	£14.67		Add to Basket
TFD0012 (Wrapped Cover)
	-04	1/4" (6.4mm)	225 bar	140701	41	£7.68	£6.40	£5.48		Add to Basket
	-05	5/16" (8.0mm)	215 bar	140702	0	£9.95	£8.29	£7.10		Add to Basket
	-06	3/8" (9.5mm)	180 b ar	140703	51	£8.49	£7.07	£6.06		Add to Basket
	-08	1/2" (12.7mm)	160 bar	140704	28	£10.77	£8.97	£7.69		Add to Basket
	-10	5/8" (16.0mm)	130 barr	140705	0	£12.76	£10.64	£9.12		Add to Basket
	-12	3/4" (19.0mm)	105 bar	140706	39	£14.16	£11.80	£10.11		Add to Basket
	-16	1" (25.4mm)	88 bar	140707	41	£19.04	£15.86	£13.60		Add to Basket
	-20	1 1/4" (31.8mm)	63 bar	140708	5	£29.72	£24.77	£21.23		Add to Basket
	-24	1 1/2" (38.1mm)	50 bar	140709	2	£34.87	£29.06	£24.91		Add to Basket
	-32	2" (50.8mm)	40 bar	140710	0	£48.78	£40.65	£34.84		Add to Basket

(All Prices Exclude VAT)
