Metric Male Heavy (S) 24 Degree Seat

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

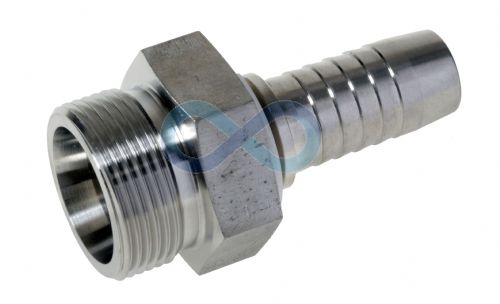

Standard stainless steel insert with Metric Male thread with 24 degree seat to suit hydraulic hoses.

The hose size shown is the inside diameter in 1/16".

Please note the following Schwer ferrules (see related products) must be used with these Schwer inserts.

Technical Details

Manufacturers Ref:

SA-CE S

Datasheets

Metric Male Heavy (S) 24 Degree Seat datasheet

Click Here

Prices (Click quantity for more availability info)

Thread	Hose size (1/16")	Tube OD mm	Order Code	Available	1+	10+	50+
M16 x 1.5	-04	8S	132187	2	£20.83	£16.20	£13.26
M18 x 1.5	-04	10S	132188	0	£15.78	£12.28	£10.04
M18 x 1.5	-05	10S	132189	0	£39.19	£30.48	£24.94
M20 x 1.5	-05	12S	132190	0	£18.76	£14.59	£11.94
M18 x 1.5	-06	10S	132191	0	£21.74	£16.91	£13.83
M20 x 1.5	-06	12S	132192	2	£20.57	£16.00	£13.09
M22 x 1.5	-06	14S	132193	0	£21.77	£16.93	£13.86
M22 x 1.5	-08	14S	132194	0	£42.42	£32.99	£26.99
M24 x 1.5	-08	16S	132195	0	£25.26	£19.65	£16.07
M30 x 2.0	-10	20S	132196	0	£30.37	£23.62	£19.33
M30 x 2.0	-12	20S	132197	0	£33.53	£26.08	£21.34
M36 x 2.0	-12	25S	132198	1	£52.21	£40.61	£33.23
M36 x 2.0	-16	25S	132199	0	£59.98	£46.65	£38.17
M42 x 2.0	-16	30S	132200	0	£75.91	£59.04	£48.31
M52 x 2.0	-20	38S	132201	0	£110.93	£86.28	£70.59

(All Prices Exclude VAT)
