In Line & 90 Deg Swivel Adaptors 1/4

In Line & 90 Deg Swivel Adaptors 1/4

In Line & 90 Deg Swivel Adaptors 1/4" - 1" BSP

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

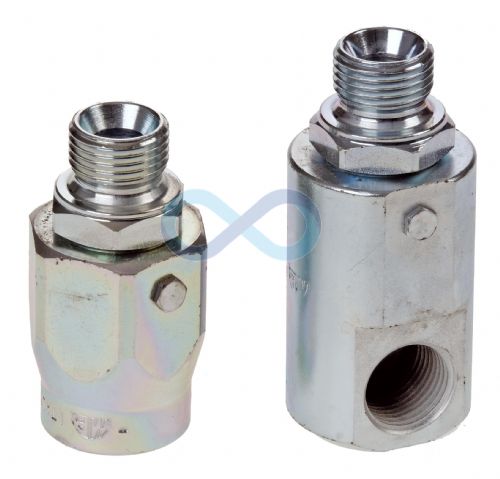

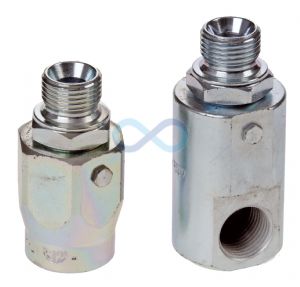

Inline & 90 Deg swivel adaptors, designed to be mounted between a hose and a rigid component in order to allow and compensate occasional rotations, preventing hose damage.

Manufacturers Ref:
8204 - Inline Swivel Adaptor
8205 - 90 Degree Swivel Adaptor

Technical Details

Material:

Carbon Steel

Plating:

Trivalent CRIII

Sealing:

NBR Nitrile

Threads:

1/4" to 1" BSP

Operating Temp:

-40 Deg C to 100 Deg C

Datasheets

In Line & 90 Deg Swivel Adaptors 1/4 - 1 BSP datasheet

Click Here

Prices (Click quantity for more availability info)

	Thread	Max Working Pressure	Order Code	Available	1+	5+	Quantity
Inline Adaptor
	1/4" BSP	400 bar	124691	3	£24.25	£18.86
	3/8" BSP	400 bar	124692	1	£26.60	£20.69
	1/2" BSP	350 bar	124693	0	£31.08	£24.17
	3/4" BSP	300 bar	124694	0	£49.44	£38.45
	1" BSP	275 bar	124695	0	£69.22	£53.83
90 Degree Swivel Adaptor
	1/4" BSP	400 bar	124699	2	£27.31	£21.24
	3/8" BSP	400 bar	124700	0	£31.08	£24.17
	1/2" BSP	350 bar	124701	0	£32.96	£25.64
	3/4" BSP	300 bar	124702	0	£64.15	£49.90
	1" BSP	275 bar	124703	0	£69.92	£54.38

(All Prices Exclude VAT)
