Description

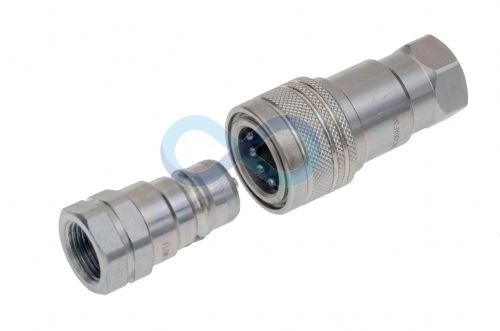

A range of quick release couplings conforming to ISO A for hydraulic and other applications.

Dust plugs & caps can be ordered separately (see related products).

Interchangeable with the following series:
Parker6600
Perfecting K
Safeway S56
Snap Tite 61
Tomco A5600
Aeroquip FD56
DNP PAV
Stucchi BIR

Technical Details

Materials:

Zinc Plated Carbon Steel Body

Valve:

Poppet Type

Back Up Ring:

In Pure Teffon

Seals:

Nitrile NBR

Working Temperature:

-25 to + 125 Deg C

Datasheets

ISO A Couplings datasheet
Click Below

1) Flowfit_ISO_A

2) TST-serie-076-1

Prices (Click quantity for more availability info)

	Dash Size	Thread	Pressure	Brand	Order Code	Available	1+	5+
Carrier Half
	04	1/4" BSP	315 bar	Flowfit	131921	10	£7.41	£5.92
	04	1/4" BSP	400 bar	TST	140411	13	£8.16	£6.38
	06	3/8" BSP	300 bar	TST	140412	11	£11.16	£8.73
	08	1/2" BSP	250 bar	Flowfit	131923	1	£10.31	£8.25
	08	1/2" BSP	250 bar	TST	140413	15	£11.58	£9.07
	12	3/4" BSP	250 bar	TST	140414	4	£19.31	£15.12
	16	1" BSP	230 bar	TST	140415	11	£27.89	£21.83
Probe Half
	04	1/4" BSP	400 bar	TST	140416	19	£5.58	£4.36
	06	3/8" BSP	300 bar	TST	140417	13	£6.44	£5.04
	08	1/2" BSP	250 bar	TST	140418	24	£7.01	£5.49
	12	3/4" BSP	250 bar	TST	140419	12	£13.45	£10.53
	16	1" BSP	200 bar	Flowfit	131933	6	£14.70	£11.76
	-	-	230 bar	TST	140420	4	£16.48	£12.90

(All Prices Exclude VAT)
