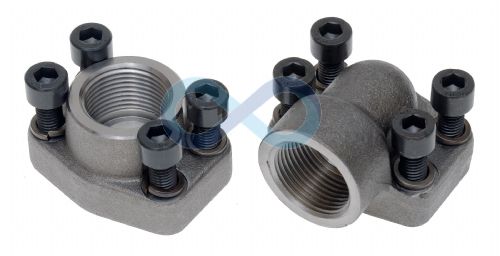

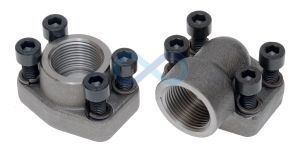

SAE - BSP Threaded Flange

SAE - BSP Threaded Flange

SAE - BSP Threaded Flange

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Socket with female parallel BSP thread with 3K or 6K PSI SAE Flange to suit high pressure hydraulic machines.

Available in straight and 90 Degree versions.

Supplied with SAE O ring and set of four screws.

Spare SAE O rings can be ordered separately.

Technical Details

Manufacturers Ref:

AFS S:

Straight

AFS 90 S:

90 Degree

Datasheets

SAE - BSP Threaded Flange datasheet
Click Below

1) AFS G

2) AFS 90 G

Prices (Click quantity for more availability info)

	Thread	Bolt Size	Order Code	Available	1+	5+	20+	Quantity
Straight SAE Flange 3000 PSI
	3/4" BSP	M10x35	131822	1	£39.25	£32.42	£27.62
	1" BSP	M10x35	131823	2	£45.54	£37.62	£32.04
	1 1/4" BSP	M10x40	131824	1	£54.54	£45.05	£38.38
	1 1/2" BSP	M12x45	131825	0	£68.87	£56.90	£48.47
	2" BSP	M12x45	131826	0	£83.43	£68.92	£58.71
	2 1/2" BSP	M12x45	131827	0	£70.77	£58.46	£49.80
	3 1/2" BSP	M16x50	131829	0	£176.08	£145.45	£123.91
90 Degree SAE Flange 3000 PSI
	3/4" BSP	M10x35	131838	2	£84.38	£69.70	£59.38
	1" BSP	M10x35	131839	2	£94.65	£78.19	£66.61
	1 1/2" BSP	M12x45	131841	0	£142.30	£117.55	£100.14
	2" BSP	M12x45	131842	0	£172.44	£142.45	£121.35
Straight SAE Flange 6000 PSI
	1/2" BSP	M8x30	131831	0	£37.89	£31.30	£26.67
	3/4" BSP	M10x35	131832	2	£46.21	£38.18	£32.52
	1" BSP	M12x45	131833	2	£56.60	£46.75	£39.83
	1 1/4" BSP	M14x45	131834	1	£75.30	£62.20	£52.99
	1 1/2" BSP	M16x50	131835	0	£108.39	£89.54	£76.28
90 Degree SAE Flange 6000 PSI
	1/2" BSP	M8x30	131843	0	£81.13	£67.02	£57.09
	3/4" BSP	M10x35	131844	2	£94.38	£77.97	£66.42
	1" BSP	M12x45	131845	2	£112.49	£92.92	£79.16
	1 1/2" BSP	M16x50	131847	0	£179.06	£147.92	£126.00
Spare SAE O Rings
	1/2"	-	131848	10	£0.06	£0.04	£0.03
	3/4"	-	131849	10	£0.07	£0.04	£0.03
	1"	-	131850	10	£0.09	£0.06	£0.05
	1 1/4"	-	131851	31	£0.09	£0.06	£0.05
	1 1/2"	-	131852	83	£0.14	£0.09	£0.07
	2"	-	131853	16	£0.25	£0.16	£0.13

(All Prices Exclude VAT)
